【干货】华为企业网络典型配置案例
发布作者：微思网络 发布时间：2017-09-11 浏览量：0次
介绍：
下面为一般企业网络的结构、规划以及配置。
对内网部门划分vlan、无线配置、服务器的映射以及内网之间的互访都做了介绍。
1.各部门、服务器、无线都独立一个网段。
2.无线网络采用旁挂直接转发模式。
3.无线网络不能访问公司内网资源、只允许上网。
设备：
外网防火墙：USG5120
核心： S5700
接入： S3700
无线控制器：AC6005
无线AP：AP6010DN-AGN
网络拓扑：

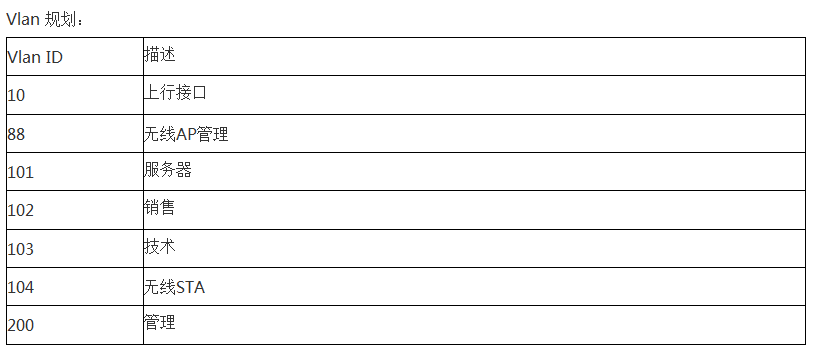

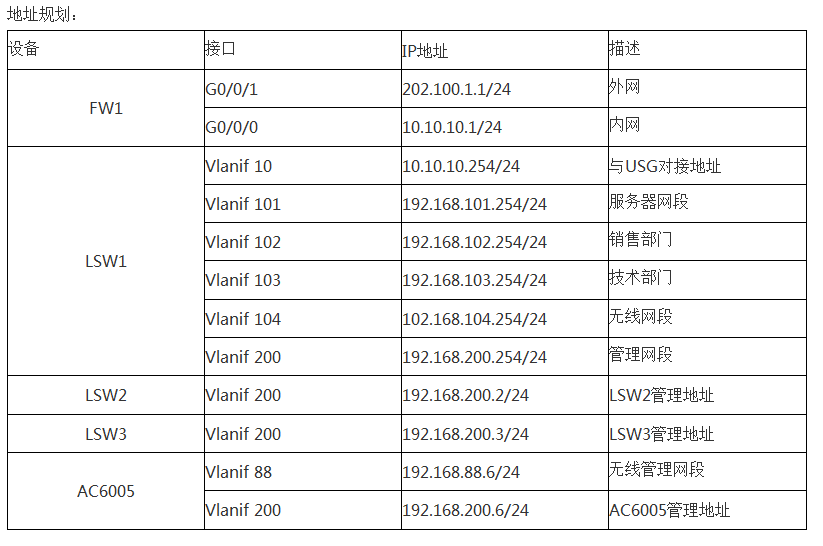

地址规划：
操作步骤：
1. 防火墙配置。
#
sysname FW1
#
interface GigabitEthernet0/0/0
alias Lan
ip address 10.10.10.1 255.255.255.0
#
interface GigabitEthernet0/0/1
alias Wan
ip address 202.100.1.1 255.255.255.0
#
#
firewall zone trust
add interface GigabitEthernet0/0/0
#
firewall zone untrust
add interface GigabitEthernet0/0/1
#
ip route-static 0.0.0.0 0.0.0.0 202.100.1.2
ip route-static 192.168.0.0 255.255.0.0 10.10.10.254
#
nat-policy interzone trust untrust outbound
policy 1
action source-nat
easy-ip GigabitEthernet0/0/1
#
firewall packet-filter default permit interzone trust untrust direction outbound //允许内网到外网的默认域间规则
#

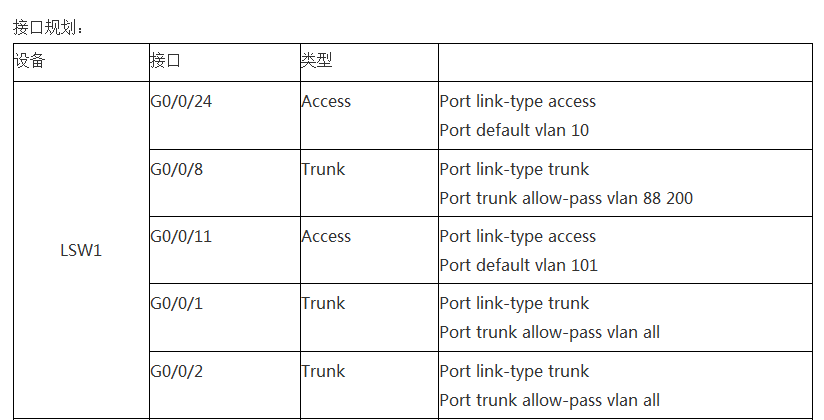

2. LSW配置。
#
sysname LSW1
#
vlan batch 10 88 101 to 104 200
#
dhcp enable
#
interface Vlanif10
ip address 10.10.10.254 255.255.255.0
#
interface Vlanif101
description Server
ip address 192.168.101.254 255.255.255.0
#
interface Vlanif102
ip address 192.168.102.254 255.255.255.0
#
interface Vlanif103
ip address 192.168.103.254 255.255.255.0
#
interface Vlanif104
description WLAN-STA
ip address 192.168.104.254 255.255.255.0
dhcp select interface
dhcp server dns-list 192.168.101.2
#
interface Vlanif200
description Manager
ip address 192.168.200.254 255.255.255.0
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan all
#
interface GigabitEthernet0/0/8
port link-type trunk
port trunk allow-pass vlan 88 200
#
interface GigabitEthernet0/0/11
port link-type access
port default vlan 101
#
interface GigabitEthernet0/0/24
port link-type access
port default vlan 10
#
ip route-static 0.0.0.0 0.0.0.0 10.10.10.1
#

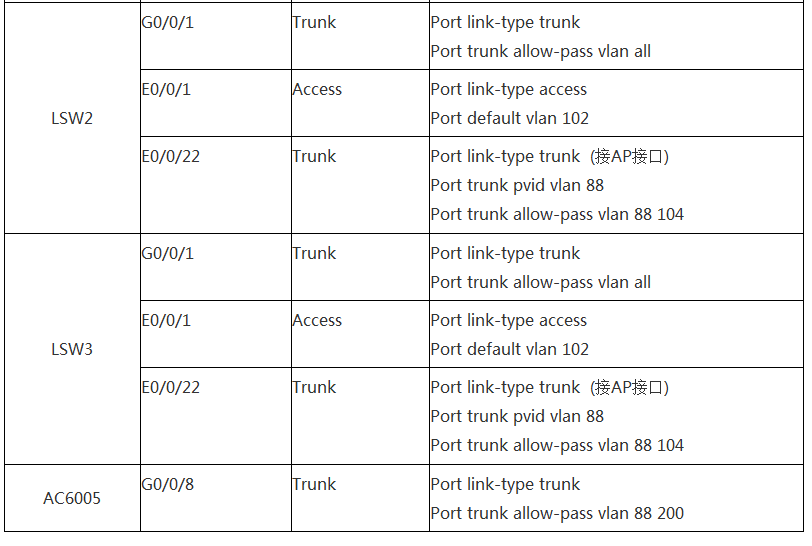

3. LSW2配置。
#
sysname LSW2
#
vlan batch 88 102 to 104 200
#
interface Vlanif200
ip address 192.168.200.2 255.255.255.0
#
interface Ethernet0/0/1
port link-type access
port default vlan 102
#
interface Ethernet0/0/22
port link-type trunk
port trunk pvid vlan 88
port trunk allow-pass vlan 88 104
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan all
#
ip route-static 0.0.0.0 0.0.0.0 192.168.200.254
#
4. LSW3配置。
#
sysname LSW3
#
vlan batch 88 102 to 104 200
#
interface Vlanif200
ip address 192.168.200.3 255.255.255.0
#
interface Ethernet0/0/1
port link-type access
port default vlan 103
#
interface Ethernet0/0/22
port link-type trunk
port trunk pvid vlan 88
port trunk allow-pass vlan 88 104
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan all
#
ip route-static 0.0.0.0 0.0.0.0 192.168.200.254
#
5. AC6005配置。
Vlan 88为无线AP管理网段、配置DHCP为AP分配地址。
#
sysname AC6005
#
vlan batch 88 200
#
dhcp enable
#
interface Vlanif88
ip address 192.168.88.6 255.255.255.0
dhcp select interface
#
interface Vlanif200
ip address 192.168.200.6 255.255.255.0
#
interface GigabitEthernet0/0/8
port link-type trunk
port trunk allow-pass vlan 88 200
#
interface Wlan-Ess104
port hybrid untagged vlan 104
#
wlan
wlan ac source interface vlanif88
ap-auth-mode no-auth
wmm-profile name wmm1 id 1
traffic-profile name tra1 id 1
security-profile name sec1 id 1
service-set name ser1 id 1
wlan-ess 104
ssid HUAWEI
traffic-profile id 1
security-profile id 1
service-vlan 104
radio-profile name radio1 id 1
wmm-profile id 1
#
等待AP上线后、AP绑定射频与服务集。
#
ap 0 radio 0
radio-profile id 1
service-set id 1 wlan 1
ap 1 radio 0
radio-profile id 1
service-set id 1 wlan 1
#

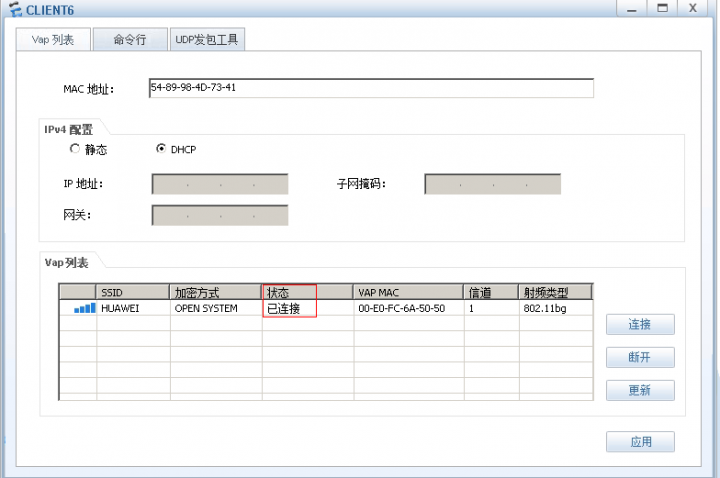

无线网络测试。
6. 内网服务器映射到外网、供外部用户访问。
#
nat server protocol tcp global 202.100.1.1 www inside 192.168.101.2 www
#
并要在防火墙配置转发策略、允许访问服务器。防火墙默认为拒绝访问。
#
policy interzone trust untrust inbound
policy 1
action permit
policy service service-set http
policy destination 192.168.101.2 0
#
测试从外网访问内部服务器。
服务器设置：
客户端访问测试：

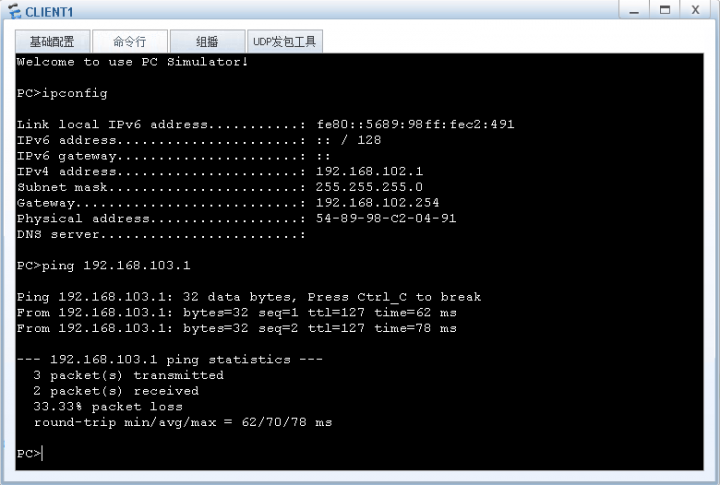

7. 部门之间互访测试。
CLIENT1 PING CLIENT2
8. 访问之间做限制、无线接入用户无法访问销售部门、技术部门和服务器。
访问限制配置在核心交换机上：
#
acl number 3000
rule 5 permit ip source 192.168.104.0 0.0.0.255 destination 192.168.101.0 0.0.0.255
rule 10 permit ip source 192.168.104.0 0.0.0.255 destination 192.168.102.0 0.0.0.255
rule 15 permit ip source 192.168.104.0 0.0.0.255 destination 192.168.103.0 0.0.0.255
#
traffic classifier c1
if-match acl 3000
#
traffic behavior b1
deny
#
traffic policy p1
classifier c1 behavior b1
#
drop-profile default
#
vlan 104
traffic-policy p1 inbound
#
配置后测试：
☂☂☂☂☂☂☂☂
