【收藏】Oracle 数据库安装
发布作者：微思网络 发布时间：2022-08-09 浏览量：0次

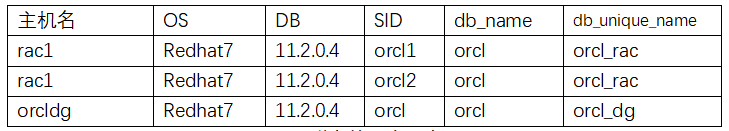

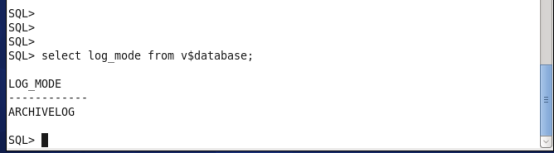

备注：orcl1是一套oracle RAC 集群中的一台服务器 主库为归档模式 主库： 启用强制日志模式（mount 状态下修改） 主库： Force_logging 为YES 代表数据库是强制日志模式。 配置standby 日志文件 主库： 配置监听（主库和备库） 使用netca配置监听。 下图是监听配置后的结果，监听正常。 主库：RAC 不用单独配置监听 备库：配置DG的时候，备份的数据库还无法open,所有要配置静态监听/u01/app/oracle/product/11.2.0.4/dbhome_1/network/admin/listener.ora 启动监听：lsnrctl start 配置tnsnames文件(主库和备库) ORCL_PRI 为主库的连接信息，orcl_std为备库的连接信息/u01/app/oracle/product/11.2.0.4/dbhome_1/network/admin/tnsnames.ora 主库： 备库： tnsping （主库和备库） 确认主库和备库是否联通 主备库：tnsping ORCL_PRI tnsping ORCL_STD 创建pfile并修改。 主库： 创建pfile ,修改pfile,生成spfile,并以spfile 启动数据库 备库： 创建相应的路径： 配置密码文件 将主库A的密码文件复制到备库和 主库B 备库创建spfile ,并启动到nomount 使用RMAN连接主备库，复制数据 打开备库，并开始同步数据Select log_mode from v$database;SQL>select force_logging from v$database;
FORCE_
------
NO
SQL> shutdown immediate;
数据库已经关闭。
已经卸载数据库。
ORACLE 例程已经关闭。
SQL>startup mount;
ORACLE 例程已经启动。
Total System Global Area 1119043584 bytes
Fixed Size 2280496 bytes
Variable Size 738198480 bytes
Database Buffers 369098752 bytes
Redo Buffers 9465856 bytes
数据库装载完毕。
SQL>alter database force logging;
数据库已更改。
SQL> alter database open;
数据库已更改。
SQL>select force_logging from v$database;
FORCE_
------
YES增加standby 日志组（正常比online 日志多一组）
alter database add standby logfile thread 1 group 5 '+DATA/orcl/onlinelog/group5_01.log' size 50M;
alter database add standby logfile thread 1 group 6 '+DATA/orcl/onlinelog/group6_01.log' size 50M;
alter database add standby logfile thread 1 group 7 '+DATA/orcl/onlinelog/group7_01.log' size 50M;
alter database add standby logfile thread 2 group 8 '+DATA/orcl/onlinelog/group8_01.log' size 50M;
alter database add standby logfile thread 2 group 9 '+DATA/orcl/onlinelog/group9_01.log' size 50M;
alter database add standby logfile thread 2 group 10 '+DATA/orcl/onlinelog/group10_01.log' size 50M;
--查询standby log 命令
SELECT bytes,GROUP#,THREAD#,SEQUENCE#,ARCHIVED,STATUS FROM V$STANDBY_LOG;
--删除standby 的命令
alter database drop standby logfile group 4;SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(GLOBAL_DBNAME = orcl_dg)
(ORACLE_HOME = /u01/app/oracle/product/11.2.0.4/dbhome_1)
(SID_NAME = orcl)
)
)
LISTENER =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.2.180)(PORT = 1521))
)
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
)
)
ADR_BASE_LISTENER = /u01/app/oracle/product/11.2.0.4/dbhome_1ORCL_PRI =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST =192.168.2.15)(PORT = 1521))
(CONNECT_DATA =
(SERVICE_NAME = orcl_rac)
)
)
ORCL_STD =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.2.180)(PORT = 1521))
(CONNECT_DATA =
(SERVICE_NAME = orcl_dg)
)
)ORCL_PRI =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST =192.168.2.15)(PORT = 1521))
(CONNECT_DATA =
(SERVICE_NAME = orcl_rac)
)
)
ORCL_STD =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.2.180)(PORT = 1521))
(CONNECT_DATA =
(SERVICE_NAME = orcl_dg)
)
)alter system set DB_UNIQUE_NAME=orcl_rac scope=spfile sid='*';
alter system set LOG_ARCHIVE_CONFIG='DG_CONFIG=(orcl_rac,orcl_dg)' scope=both sid='*';
alter system set LOG_ARCHIVE_DEST_1='LOCATION=USE_DB_RECOVERY_FILE_DEST VALID_FOR=(ALL_LOGFILES,ALL_ROLES) DB_UNIQUE_NAME=orcl_rac' scope=both sid='*';
alter system set LOG_ARCHIVE_DEST_2='SERVICE=orcl_std ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=orcl_dg' scope=both sid='*';
#standby
alter system set FAL_SERVER=orcl_std scope=both sid='*';
alter system set fal_client=orcl1 scope=both sid='orcl1';
alter system set fal_client=orcl2 scope=both sid='orcl2';
alter system set DB_FILE_NAME_CONVERT='/data/oradata/','+DATA/orcl/datafile/','/data/oradata/', '+DATA/orcl/tempfile/' scope=spfile sid='*';
alter system set LOG_FILE_NAME_CONVERT='/data/oradata/','+DATA/orcl/onlinelog/' scope=spfile sid='*';
alter system set STANDBY_FILE_MANAGEMENT=AUTO scope=both sid='*';*.audit_file_dest='/u01/app/oracle/admin/orcl/adump'
*.audit_trail='db'
*.compatible='11.2.0.4.0'
*.control_files='/data/oradata/control01.ctl','/data/oradata/control02.ctl'
*.db_create_file_dest='/u01/app/oracle/oradata'
*.db_name='orcl'
*.diagnostic_dest='/u01/app/oracle'
*.db_recovery_file_dest='/data/oradata/fast_recovery_area'
*.db_recovery_file_dest_size=462107443200
*.undo_tablespace='UNDOTBS1'
*.open_cursors=300
*.pga_aggregate_target=200M
*.processes=1500
*.sessions=1655
*.sga_target=420M
*.db_unique_name='orcl_dg'
*.log_archive_config='DG_CONFIG=(orcl_dg,orcl_rac)'
*.log_archive_dest_1='location=USE_DB_RECOVERY_FILE_DEST valid_for=(all_logfiles,all_roles) db_unique_name=orcl_dg'
*.log_archive_dest_2='SERVICE=orcl_pri ASYNC VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=orcl_pri'
*.log_file_name_convert='+DATA/orcl/onlinelog/','/data/oradata/'
*.db_file_name_convert='+DATA/orcl/datafile/','/data/oradata/','+DATA/orcl/tempfile/','/data/oradata/'
*.fal_client='ORCL_STD'
*.fal_server='ORCL1,ORCL2'
*.standby_file_management='AUTO'mkdir -p /u01/app/oracle/admin/orcl/adump
mkdir -p /data/oradata/
mkdir -p /u01/app/oracle
mkdir -p /data/oradata/fast_recovery_areascp orapworcl1 192.168.2.180:/u01/app/oracle/product/11.2.0.4/dbhome_1/dbs
mv orapworcl1 orapworcl
scp orapworcl1 192.168.2.14:/u01/app/oracle/product/11.2.0.4/db_1/dbexport ORACLE_SID=orcl
Sql> create spfile from pfile='/tmp/pfile.txt';
主库：使用RMAN 复制主库的控制文件和数据文件到备库rman target sys/oracle@orcl_pri auxiliary sys/oracle@orcl_stdRMAN> duplicate target database for standby from active database nofilenamecheck dorecover;
备库:Alter database open read only;
alter database recover managed standby database using current logfile disconnect from session;
