【技术分享】EIGRP的stub配置
发布作者：微思网络 发布时间：2022-10-25 浏览量：0次

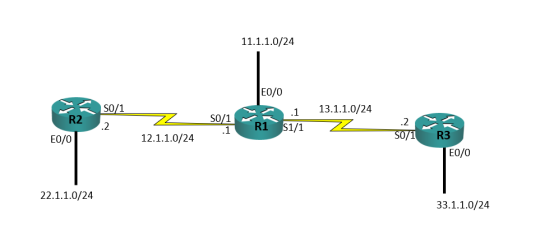

配置R1： 配置R2： 配置R3： 检查R1、R2、R3路由表： 验证 EIGRP 的 stub 特性： Router(config-router)#eigrp stub [receive-only | connected | static | summary] receive-only : 不能和其他3 个参数(connected,static 和summary)一起使用.只接收从邻居路由器发送来的信息. connected : 指定该路由器可以把和它直接相连的网络信息传递给它的邻居.这个选项默认是开启的. static : 把静态路由信息传递给它的邻居. summary : 把汇总路由信息传递给它的邻居.这个选项默认也是开启的 配置R3的 EIGRP stub receive-only 特性： 在R2,R3上用show ip route 验证: 验证 EIGRP 的 stub static特性： （1）先在R3上如下设置： （2）在R2上查看路由表： 验证 EIGRP 的 stub connect 特性： （1）在R3上 no eigrp stub static （2）在R3上增加配置： （3）在R3手工汇总 （4）在R2上查看路由表 （5）在R3上手工汇总 验证EIGRP的stub summary特性: （1）在R3上: （2）在R2上查看路由表Int s1/0
Ip add 12.1.1.1 255.255.255.0
Clock rate 9600
No sh
Int s1/1
Ip add 13.1.1.1 255.255.255.0
Clock rate 9600
No sh
Router eigrp 100
No auto-summary
Net 11.0.0.0
Net 12.0.0.0
Net 13.0.0.0Int s1/0
Ip add 12.1.1.1 255.255.255.0
Clock rate 9600
No sh
Int E0/0
Ip add 22.1.1.2 255.255.255.0
Clock rate 9600
No sh
Router eigrp 100
No auto-summary
Net 12.0.0.0
Net 22.0.0.0Int s1/0
Ip add 13.1.1.3 255.255.255.0
Clock rate 9600
No sh
Int E0/0
Ip add 33.1.1.3 255.255.255.0
Clock rate 9600
No sh
Router eigrp 100
No auto-summary
Net 13.0.0.0
Net 33.0.0.0R1#show ip route eigrp
33.0.0.0/24 is subnetted, 1 subnets
D 33.1.1.0 [90/2195456] via 13.1.1.3, 00:00:33, Serial1/0
22.0.0.0/24 is subnetted, 1 subnets
D 22.1.1.0 [90/2195456] via 12.1.1.2, 01:19:55, Serial0/0
R1#
R2#show ip route eigrp
33.0.0.0/24 is subnetted, 1 subnets
D 33.1.1.0 [90/2707456] via 12.1.1.1, 00:00:04, Serial0/0
11.0.0.0/24 is subnetted, 1 subnets
D 11.1.1.0 [90/2195456] via 12.1.1.1, 01:19:04, Serial0/0
13.0.0.0/24 is subnetted, 1 subnets
D 13.1.1.0 [90/2681856] via 12.1.1.1, 01:18:00, Serial0/0
R2#
R3#sho ip route eigrp
22.0.0.0/24 is subnetted, 1 subnets
D 22.1.1.0 [90/2707456] via 13.1.1.1, 00:00:06, Serial0/0
11.0.0.0/24 is subnetted, 1 subnets
D 11.1.1.0 [90/2195456] via 13.1.1.1, 00:00:06, Serial0/0
12.0.0.0/24 is subnetted, 1 subnets
D 12.1.1.0 [90/2681856] via 13.1.1.1, 00:00:06, Serial0/0
R3#R3#show run | begin router eigrp
router eigrp 100
network 13.0.0.0
network 33.0.0.0
no auto-summary
eigrp stub receive-onlyR2#show ip route eigrp //没有收到33.1.1.0/24的路由
11.0.0.0/24 is subnetted, 1 subnets
D 11.1.1.0 [90/2195456] via 12.1.1.1, 01:26:24, Serial0/0
13.0.0.0/24 is subnetted, 1 subnets
D 13.1.1.0 [90/2681856] via 12.1.1.1, 01:25:21, Serial0/0
R2#
R3#show ip route eigrp //可以接收R1,R2的路由
22.0.0.0/24 is subnetted, 1 subnets
D 22.1.1.0 [90/2707456] via 13.1.1.1, 00:01:16, Serial0/0
11.0.0.0/24 is subnetted, 1 subnets
D 11.1.1.0 [90/2195456] via 13.1.1.1, 00:01:16, Serial0/0
12.0.0.0/24 is subnetted, 1 subnets
D 12.1.1.0 [90/2681856] via 13.1.1.1, 00:01:16, Serial0/0
R3#R3(config)#ip route 44.1.1.0 255.255.255.0 ethernet 0/0 //增加一条静态路由
R3(config)#router eigrp 100
R3(config-router)#redistribute static //把静态路由发布到EIGRP中
R3(config-router)#R2#show ip route eigrp //有44.1.1.0的路由但没有connect 33.1.1.0的路由
11.0.0.0/24 is subnetted, 1 subnets
D 11.1.1.0 [90/2195456] via 12.1.1.1, 00:00:35, Serial0/0
13.0.0.0/24 is subnetted, 1 subnets
D 13.1.1.0 [90/2681856] via 12.1.1.1, 00:00:35, Serial0/0
44.0.0.0/24 is subnetted, 1 subnets
D EX 44.1.1.0 [170/7801856] via 12.1.1.1, 00:00:05, Serial0/0
R2#R3(config)#router eigrp 100
R3(config-router)#no eigrp stubR3(config)#router eigrp 100
R3(config-router)#eigrp stub connectedR3(config)#int s0/0
R3(config-if)#ip summary-address eigrp 100 33.1.0.0 255.255.255.0R2#show ip route eigrp //发现有33.1.1.0的路由而没有44.1.1.0的路由,也没有汇总路由
33.0.0.0/24 is subnetted, 1 subnets
D 33.1.1.0 [90/2707456] via 12.1.1.1, 00:00:48, Serial0/0
11.0.0.0/24 is subnetted, 1 subnets
D 11.1.1.0 [90/2195456] via 12.1.1.1, 00:06:02, Serial0/0
13.0.0.0/24 is subnetted, 1 subnets
D 13.1.1.0 [90/2681856] via 12.1.1.1, 00:06:02, Serial0/0
R2#R3(config)#int s1/0
R3(config-if)#ip summary-address eigrp 100 33.1.0.0 255.255.255.0R3(config)#router eigrp 100
R3(config-router)#no eigrp stub
R3(config-router)#eigrp stub summaryR2#show ip route eigrp //有汇总路由33.1.0.0/16
33.0.0.0/16 is subnetted, 1 subnets
D 33.1.0.0 [90/2707456] via 12.1.1.1, 00:00:19, Serial0/0
11.0.0.0/24 is subnetted, 1 subnets
D 11.1.1.0 [90/2195456] via 12.1.1.1, 00:12:09, Serial0/0
13.0.0.0/24 is subnetted, 1 subnets
D 13.1.1.0 [90/2681856] via 12.1.1.1, 00:12:09, Serial0/0
R2#
