【技术分享】MSTP配置
发布作者：微思网络 发布时间：2022-09-16 浏览量：0次

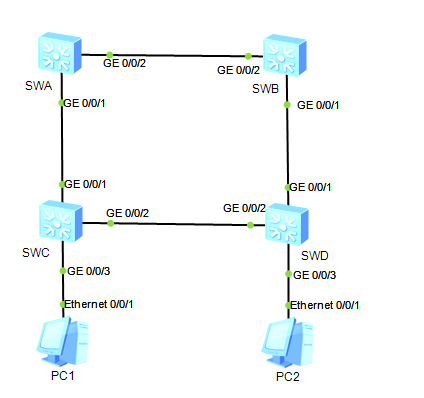

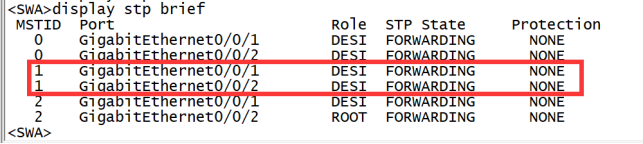

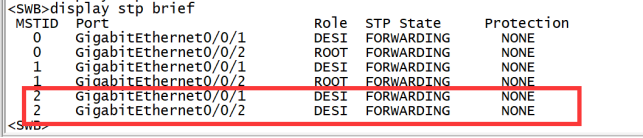

为实现分别属于不同VLAN的的流量能够进行负载均衡，可采用MSTP来实现，VLAN1~10为一组，VLAN11~20为二组；要求SWA成为组一的根，组二备份的根，SWB成为组二的根，组一备份的根，vlan1-10走SWC-SWA；vlan11-20走SWD-SWB。 查看SWA端口状态 查看SWB端口状态 查看SWC端口状态 查看SWD端口状态 1vlan batch 2 to 20
#
stp instance 1 root primary
stp instance 2 root secondary
stp region-configuration
region-name RG1
instance 1 vlan 1 to 10
instance 2 vlan 11 to 20
active region-configuration
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 2 to 4094vlan batch 2 to 20
#
stp instance 1 root secondary
stp instance 2 root primary
stp region-configuration
region-name RG1
instance 1 vlan 1 to 10
instance 2 vlan 11 to 20
active region-configuration
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 2 to 4094vlan batch 2 to 20
stp region-configuration
region-name RG1
instance 1 vlan 1 to 10
instance 2 vlan 11 to 20
active region-configuration
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 2 to 4094
stp instance 2 cost 200000
interface GigabitEthernet0/0/3
port link-type access
port default vlan 10
stp edged-port enablevlan batch 2 to 20
stp region-configuration
region-name RG1
instance 1 vlan 1 to 10
instance 2 vlan 11 to 20
active region-configuration
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 2 to 4094
stp instance 1 cost 200000
#
interface GigabitEthernet0/0/3
port link-type access
port default vlan 20
stp edged-port enable
