【技术分享】配置华为DHCP中继
发布作者：微思网络 发布时间：2022-09-14 浏览量：0次

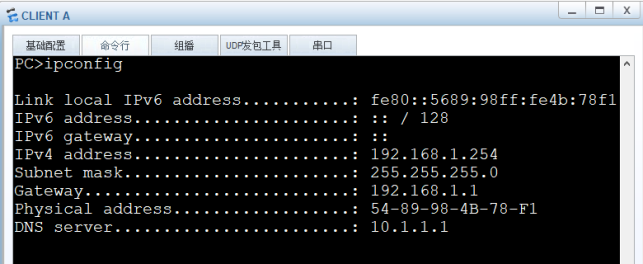

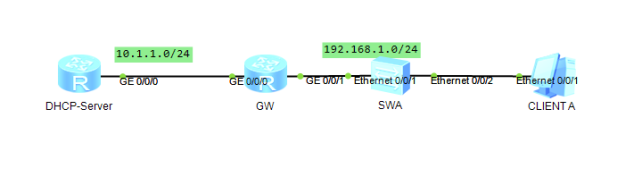

在DHCP-server上配置地址池，在GW上配置DHCP的中继，使得CLIENTA能够获取到相应的IP地址 DHCP-Server配置： GW配置： 1dhcp enable
#
ip pool DHCP-relay
gateway-list 192.168.1.1
network 192.168.1.0 mask 255.255.255.0
dns-list 10.1.1.1
interface GigabitEthernet0/0/0
ip address 10.1.1.1 255.255.255.0
dhcp select global
ip route-static 192.168.1.0 255.255.255.0 10.1.1.2dhcp enable
#
dhcp server group DHCP
dhcp-server 10.1.1.1 0
interface GigabitEthernet0/0/0
ip address 10.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/1
ip address 192.168.1.1 255.255.255.0
dhcp select relay
dhcp relay server-select DHCP
