【每日必学】ASA Single-Mode Active. Standby Failover

发布作者:微思网络   发布时间:2017-05-16   浏览量:0


实验拓扑:


泉州CCNP培训教你ASA1 基本配置:



hostname ASA1 interface Ethernet0/0 nameif Outside security-level 0



ip address 11.1.1.254 255.255.255.0 standby 11.1.1.253 no shutdown



interface Ethernet0/1 nameif Inside security-level 100



ip address 22.1.1.254 255.255.255.0 standby 22.1.1.253 no shutdown



interface Ethernet0/3 no shutdown



ASA2 基本配置: interface Ethernet0/3 no shutdown



配置 Failover:



ASA1:



failover lan unit primary

failover lan interface FO Ethernet0/3



failover interface ip FO 10.1.1.1 255.255.255.0 standby 10.1.1.254 failover key cisco

failover

failover link FO Ethernet0/3



ASA2:



failover lan unit secondary

failover lan interface FO Ethernet0/3



failover interface ip FO 10.1.1.1 255.255.255.0 standby 10.1.1.254 failover key cisco

failover

failover link FO Ethernet0/3



R1 上验证:show failover





R2 上验证:show failover


测试:



R2  ping 或是 telnet  R1



telnet 11.1.1.1 后关闭交换机的接口(交换机连接到 Active 状态的 ASA Inside 或 Outside 的接口)



再查看 telnet 连接是否断开



手工改变设备的主用状态:



ASA1(config)# failover active



常用验证命令:



Show failover ,show conn , show run interface ,show run,show run failover














































































ASA1 基本配置:



hostname ASA1 interface Ethernet0/0 nameif Outside security-level 0



ip address 11.1.1.254 255.255.255.0 standby 11.1.1.253 no shutdown



interface Ethernet0/1 nameif Inside security-level 100



ip address 22.1.1.254 255.255.255.0 standby 22.1.1.253 no shutdown



interface Ethernet0/3 no shutdown



ASA2 基本配置: interface Ethernet0/3 no shutdown




TEL:0592-2236681 - 1 - HTTP://WWW.XMWS.CN


微思网络,专注高端



配置 Failover:



ASA1:



failover lan unit primary

failover lan interface FO Ethernet0/3



failover interface ip FO 10.1.1.1 255.255.255.0 standby 10.1.1.254 failover key cisco

failover

failover link FO Ethernet0/3



ASA2:



failover lan unit secondary

failover lan interface FO Ethernet0/3



failover interface ip FO 10.1.1.1 255.255.255.0 standby 10.1.1.254 failover key cisco

failover

failover link FO Ethernet0/3

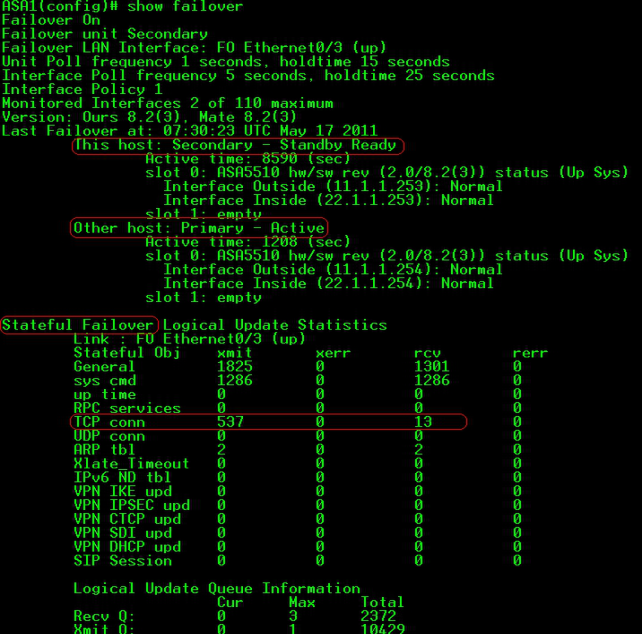

R1 上验证:show failover




































































































TEL:0592-2236681 - 2 - HTTP://WWW.XMWS.CN


微思网络,专注高端



R2 上验证:show failover







































































































测试:



R2  ping 或是 telnet  R1



telnet 11.1.1.1 后关闭交换机的接口(交换机连接到 Active 状态的 ASA Inside 或 Outside 的接口)



再查看 telnet 连接是否断开



手工改变设备的主用状态:



ASA1(config)# failover active



常用验证命令:



Show failover ,show conn , show run interface ,show run,show run failover
